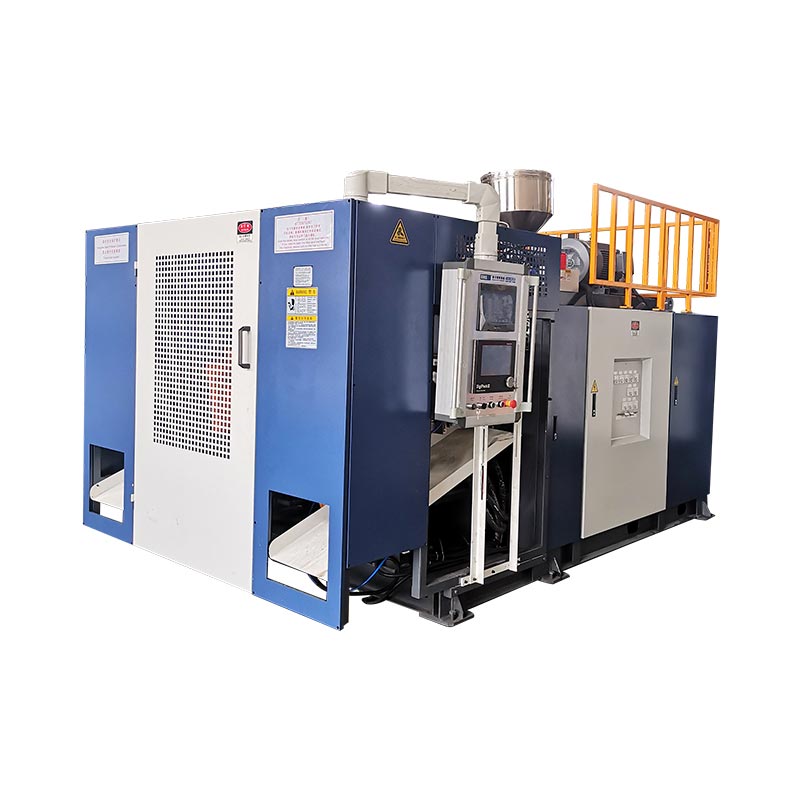

5l imwe station blow buling muchina

Model:KGB5L

Inosangana nekuchinjika uye kushanda kwebwe redu-station kuenderera mberi kuputika muchina. Yakagadzirirwa kusvika ku5L midziyo, iyi 5L imwe station blow Malding Melding Meld

Vhoriyamu: 5lKurera: 3.0t

Send Inquiry

Product Description Specification Application

Kunyangwe iwe uchida imwe yakazvitsaurira Taura nesu nhasi kuti uongorore mitengo yedu yemakwikwi uye uzive kuti muchina uyu ungasimudza sei kugona kwako kwekugadzira.

Zvimiro uye Zvakanakira

● One Station Transless Cult Shinda Mechanism, yakagadzirirwa neyakagadziriswa Buffer Intottle Valve kuti ione kuti yakatsiga uye inoshanda mold ichinja mashandiro ekuchinja.
● Musoro unofa wakagadzirwa uine system yepakati yekudyisa, optimizing kugoverwa kwezvinhu zvekuvandudzwa kwechigadzirwa mhando.
.
● With a maximum product volume capacity of 5L, it stands as the top choice for low-volume production of containers ranging from 2L to 5L.
● Nezve maitiro echigadzirwa, inopa sarudzo dzinoverengeka kusanganisira imwe-layer, kaviri-layer zvimiro, pamwe nevaridzi vepasirese kusangana nemusika misika yemusika.
● Iyo hydraulic system inoratidzira kusiyanisa dhizaini, kuendesa yakanyanya kushanda uye nekukurumidza mhinduro inomhanya, inowedzera kuwedzera kugadzirwa kwekugadzira.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
