60l kuunganidza kuputika Molding Mess

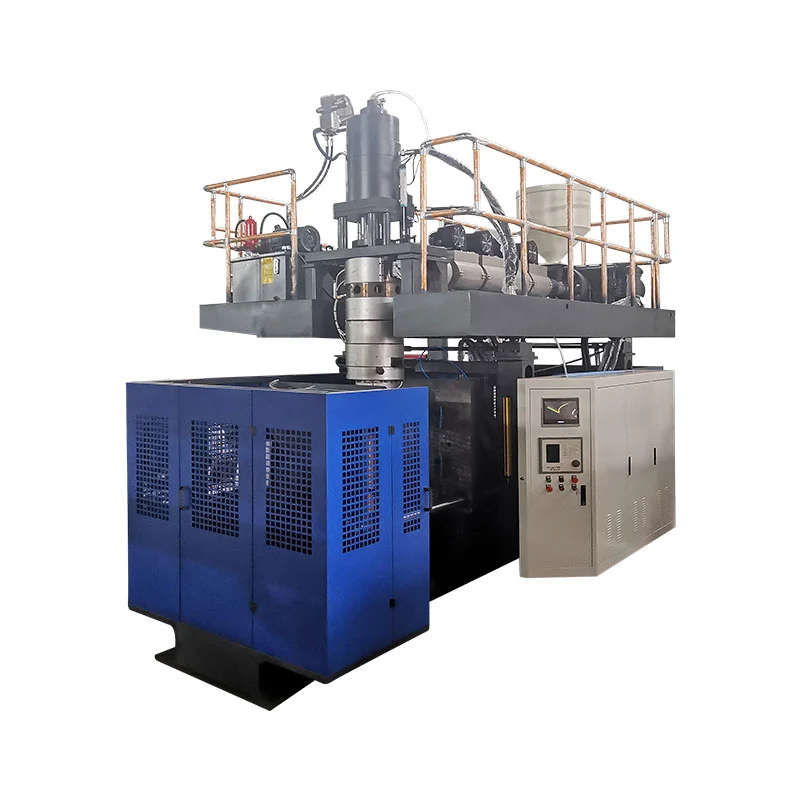

Model:KGB90A

Izvi zvakavhurika zvekuvhura uye nekuvhara muchina wekuumbwa, kubhururuka kafiruva Yakashongedzerwa neHyderric servha yeServes yekukurumidza kupindura uye simba rekuchengetedza, iyi 60l inokwirisa blow scusing inovhara mune zvigadzirwa zvakawanda, kubva kumidziyo madiki kune yakakura mavhoriyamu.

Vhoriyamu: 60lUremu: 14t

Send Inquiry

Product Description

Iyo Standard Kgb90a Model, inotungamira yekuwirirana musoro kuputika Molding Molding Scess, inosanganisira moog 10og 100 gobvu controller, robot ruoko, uye pasi kuridza system, kuvandudza chigadzirwa uye zvigadzirwa zvechigadzirwa. Iyi 60l inokwirisa molding Molding Malding Malding Meland

Zvinyorwa

Siriyero nhamba	Chinyorwa Pe, pp, AB ...	Yakagadziriswa yakavhurika mhando Mold kuvhara mafuta cylinder (single cylinder)
Siriyero nhamba	Chinyorwa Pe, pp, AB ...	Machine Model: Kgb90a
Zvinyorwa
1	Max mudziyo kugona	60 l
2	Kubuda (yakaoma kutenderera)	500 PC / HR

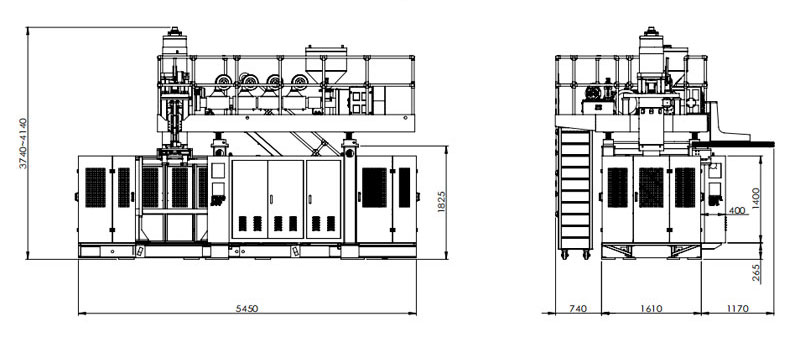

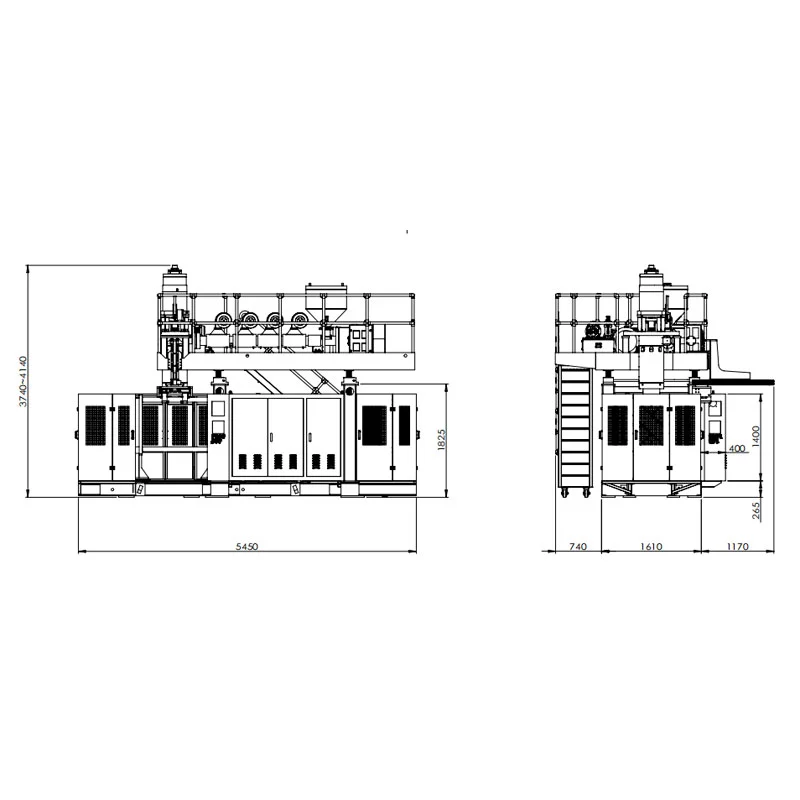

3	Machine Dimension (L × W × H)	5.45 m x 3.5 m x 4.2 m
4	Machine Kurema	14 t
Kunyomba unit
1	Kusimba simba	280 kn
2	Mold Platen Saizi (W × h)	960 mm x 980 mm
3	Mahwendefa akavhura stroke	450 mm-1050 mm
4	Akapfava achifambisa stroke	500 mm
5	Max Mold Size (W × H)	700 mm x 980 mm
6	MOLD BIKI	460 mm-550 mm
Simba
1	Servo Mafuta Pombi Mota Simba	18.5 kw
2	ServerOpump kudzingwa	150 l / min
3	Buridza kumanikidzwa	0.8 MPA
4	Kushandisa Mhepo	1 m³ / mi
5	Kutonhora kumadokero kwemvura	0.3 MPA
6	Mvura yemvura	90 L / min
7	Avhareji yesimba rekushandisa	35 KW-45 kW
Extruder unit
1	Screw diameter	90 mm
2	Screw l / d ratio	24 l / d
3	Inonyungudika capacit yeHDPE	130 KG / HR-160 KG / HR
4	Nhamba yenzvimbo yekupisa	4 zone
5	Screw kupisa simba	17.6 KW
6	Screw fan simba	0.5 kw
7	Extruder Motor Simba	46 KW
Kufa musoro
1	Nhamba yezvikamu zvekupisa	5 Zone
2	Simba rekupisa	26.8 kw
3	Max die-pin diameter	320 mm
4	Accumulator kugona	6.6 l
5	(Pe) Accumulator uremu	4.95 kg

Zvimiro uye Zvakanakira

Iyi modhi ndeyekuvhura mold kuvhura uye kuvhara mhando, uchishandisa kaviri Tie Rod Synchronous Mold Kuvharira Mechanism, uye iyo Cylinder yeCylinda yakananga kudzvinyirira kuronga
● Kuchengetedza silinda kufa musoro
● Maximum vhoriyamu 60l
● Zvakakodzera pamakemikari ekurongedza maruva, matoyi makuru, ABS yemota motokari, nezvimwe.
● Uchishandisa tekinoroji yakasarudzika, kuumbwa kwehunyanzvi hwekunyudza system, hombe kuronga simba, kukurumidza kuumbwa nekumhanyisa kumhanya, pfupi chigadzirwa chechigadzirwa chechigadzirwa
