1000l IBC Mvura matangi anounganidza blow buling muchina

Model:KGB1000L- IBC

Sangana neSimba uye Kugadzikana kweKGB1000L IBC TANKS TANKS YAKADZWA PLEGLINA MOLDING Machine Iyo diagonal kaviri tie tambo uye central matatu-cylinder kuronga kuve nechokwadi chekupararira kwekunetseka pamusoro pehurumende, kuvandudza kurongeka kwekugadzira.

Vhoriyamu: 1000lKurera: 55T

Send Inquiry

Product Description Specification Application

Iyi 1000l IBC Tangi yemvura inounganidza blow Molding Malding Meld Yakanakira kubereka midziyo yakakura, kusanganisira tangi yemvura inovhuvhuta muchina zvidhori, ichiita kuti iite kuti iite zvigadzirwa zvemakemikari zvirongwa, yakakura-mikuru yemotokari yemafuta ematangi, uye zvimwe. Taura nesu nhasi kune yakagadziriswa quote uye ongorora yedu yemakwikwi emvura tangi inoumba yemuchina mutengo.

Zvimiro uye Zvakanakira

Zvivakwa zvese zvinogona kusvika zvinopfuura makumi mashanu neshanu matani, zvinokwanisika kuderedza kudedera uye kudzikisira kwemuchina, uye kuvandudza kurongeka kwekugadzira uye kugadzikana.
● Diagonal Sie Tie Rods uye Central 3-Silinda Mold Slamping, Iyo template yakanyanya kusimbiswa uye isina kuremara nyore
● Multi-layer kugadzirwa kunodzora mari yekugadzira uye kunovandudza chigadzirwa kujairwa
● Zvakakodzera kugadzira zvigadzirwa zvepurasitiki zvakadai seanopfura mvura, matangi ekuchengetedza, midziyo yemakemikari, nezvimwe.

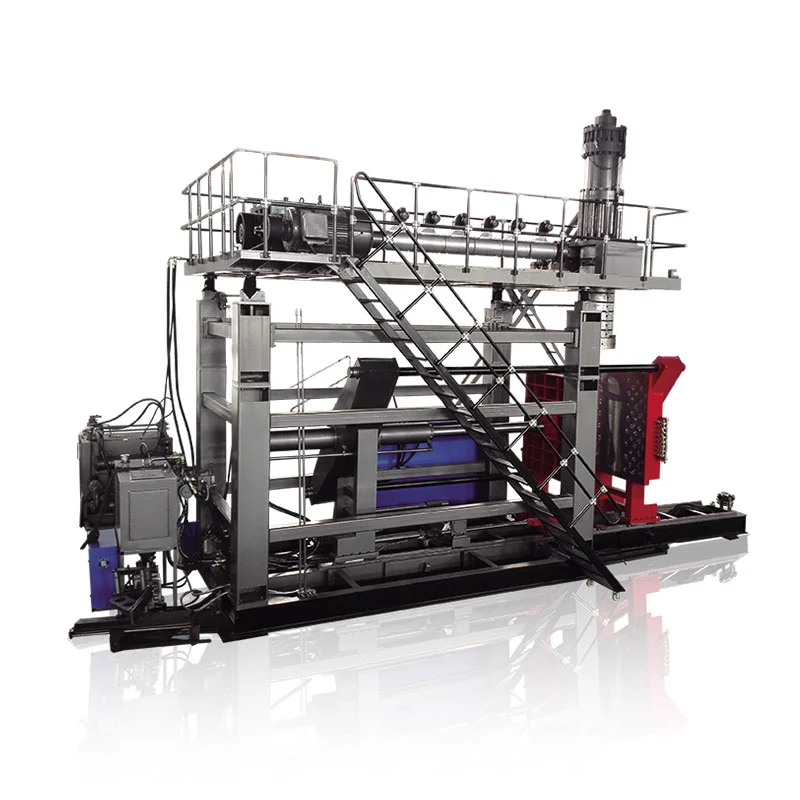

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

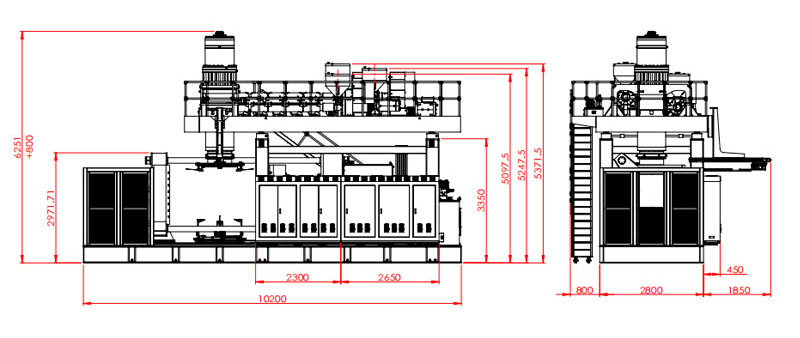

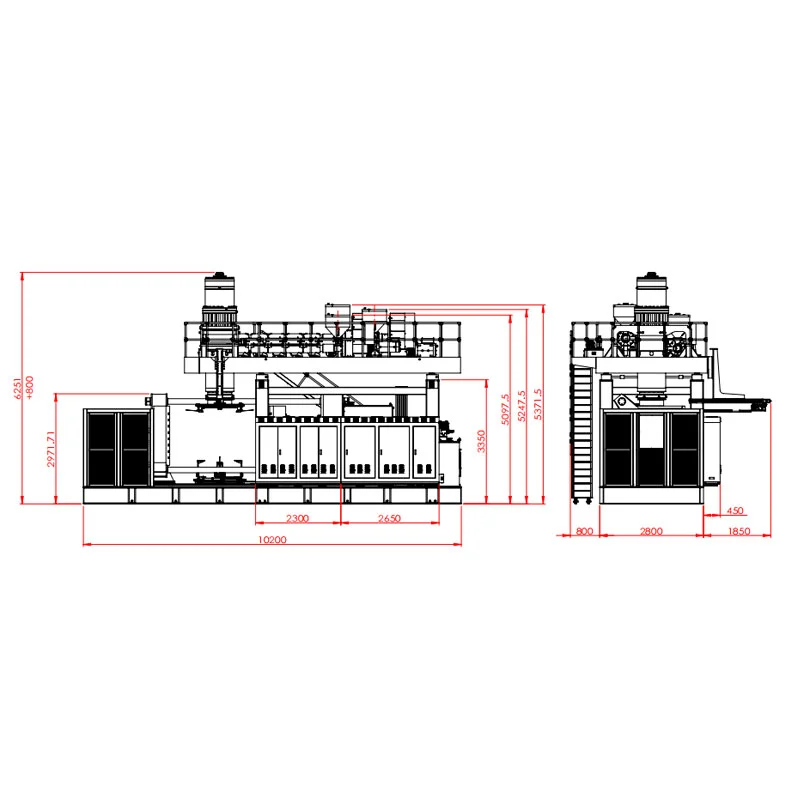

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
