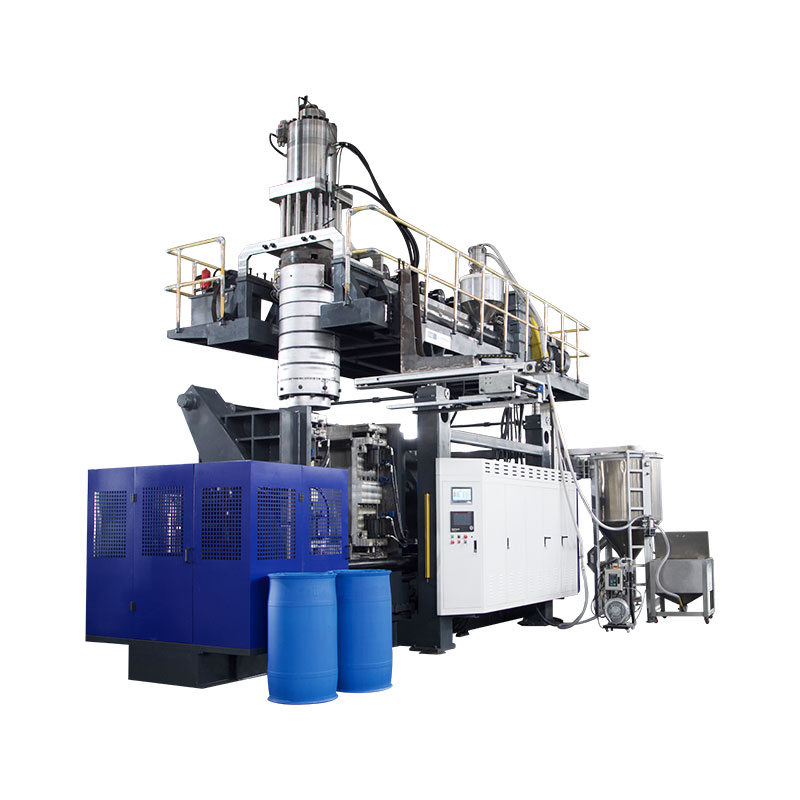

220 Liter Plastiki Drum Blow Molding Machine

Model:KGB200L

Iyo KGB200L ndeye precision-Injingi Kwemazana mazana maviri emapurasitiki plasiki kuridza chidhina chemushini, senge makemikari uye maindasitiri uye maindasitiri zvigubhu, zvinoona zvakakwirira zvemakemikari kuramba uye kuperera kwakarongeka. Inogona kupfuura 3 metrer droad bvunzo kuti utore utachiona.

Vhoriyamu: 250lUremu: 36t

Send Inquiry

Product Description

Iyo yekuwacha inofa musoro, yakasanganiswa neyakawandisa-performance Extruder unit, inopa mhedzisiro yakasarudzika. Iyi 220 liter purasitiki inovhuvhuta mold System yekuwedzera kushanda. Iyo yakaburitswa zvigubhu vanosangana nehunhu hwemhando zviyero, kusanganisira kupfuudza iyo 3-metro kudonha bvunzo uye kuwana un chitupa.

Zvinyorwa

siriyero nhamba	Chinyorwa Pe, PP, ABS, HMWHDPE ...	Specialized Machine Series
siriyero nhamba	Chinyorwa Pe, PP, ABS, HMWHDPE ...	Machine Model: Kgb200l
Zvinyorwa
1	Max mudziyo kugona	250l
2	Kubuda (yakaoma kutenderera)	300 PC / HR
3	Machine Dimension (L × W × H)	9.5 m x 4.1 m × 6.5 m
4	Machine Kurema	36t
Kunyomba unit
1	Kusimba simba	760 kn
2	Mold Platen Saizi (W × h)	1300 mm x1500 mm
3	Mahwendefa anovhura troke	800 mm -1800 mm
4	Akapfava achifambisa stroke	950 mm
5	Max Mold Size (W × H)	1100 mm × 1700 mm
6	MOLD BIKI	810 mm - 950 mm
Simba
1	Servoil Pump Mota Simba	37 K + 22 KwI
2	Servo pump kutamiswa	200 l / min +138 l / min
3	Blowpressure	0.8 MPA
4	Kushandisa Mhepo	1.8 m² / mi
5	Kutonhora kumadokero kwemvura	0.3 MPA
6	Mvura yemvura	120 l / min
7	Avhareji yesimba rekushandisa	70 KW - 80 KW
Extruder unit
1	Screw diameter	120 mm
2	Screw l / d ratio	32 l / d
3	Inonyungudika capacit yeHDPE	320 kg / hr
4	Nhamba yenzvimbo yekupisa	6 Zone
5	Screw kupisa simba	30.2
6	Screw Fanpower	0.6 kw
7	Extruder Motor Simba	110 (132) kw
Kufa musoro
1	Nhamba yezvikamu zvekupisa	5 Zone
2	Simba rekupisa	38.8 kw
3	Maxdie-Pin Diameter	450 mm
4	Accumulator kugona	25 l
5	(Pe) Accumulator uremu	18 kg

Zvimiro uye Zvakanakira

Kaviri-envelope planlopantal bar centre jection yekuchengetedza silinda kufa musoro
Kuwana huwandu hwekugadzira kwakakura kuburikidza neyekugadzirisa dhizaini uye chaiyo yekugadzira, inokwanisa kuburitsa18 zvidimbu / awa
