120l inounganidza blow monder muchina

Model:KGB100B

Sangana nekubudirira kweiyi yekutanga kuvhura uye kuvhara 120l kuunganidza blow scess muchina nekaviri kudhonza tsvimbo kuyananisa uye mafuta cylinder zvakananga kudzvinyirira kuumbwa. Iyo hydralic servo system inovimbisa mhinduro yekukurumidza kupindura uye simba rekuchengetedza, kururamisa kugadzirwa.

Vhoriyamu: 120lKurera: 18T

Send Inquiry

Product Description

Iyo standard kgb100b modhi, yepamusoro-terincal acumulator yemusoro kurova kuumbwa muchina, unosanganisira moog 100 gobvu controller, robhoti ruoko, uye pasi kuputika system, kuvandudza kubereka uye zvigadzirwa zvechigadzirwa. Iyi 120l inounganidza blow buling muchina ndeye Inokodzera zvibodzwa zvakasiyana siyana, kusanganisira makemikari chigubhu chinoputika kuumbwa Machine Solutions, Float Blow Moding Machine Maitiro, uye kugadzirwa yemakemikari mapaketi ekurongedza, matangi emota, matoyi, auto zvikamu, traffic Zvipingaidzo, Kurapa Fenicha, tafura inovhuvhuta kuumba michina michina, inoyerera buoys, macheya, uye matafura. Ine yakanyanya kurova kuumbwa kugadzirwa vhoriyamu ye120l, inobata kune yakawanda yezvinodiwa, kubva kumidziyo madiki kune makuru maindasitiri ekushandisa.

Zvinyorwa

Siriyero nhamba	Chinyorwa Pe, pp, AB ...	Mold kuvhara mafuta cylinder (single cylinder)
Siriyero nhamba	Chinyorwa Pe, pp, AB ...	Machine Model: Kgb100b
Zvinyorwa
1	Max mudziyo kugona	120l
2	Kubuda (yakaoma kutenderera)	320 PC / HR
3	Machine Dimension (L × W × H)	5.9 m x 3.8 m x 4.6 m
4	Machine Kurema	18 t
Kunyomba unit
1	Kusimba simba	440 kn
2	Mold Platen Saizi (W × h)	1200 mm x1200 mm
3	Mahwendefa akavhura stroke	500 mm-1400 mm
4	Akapfava achifambisa stroke	600 mm
5	Max Mold Size (W × H)	920 mmx1200 mm
6	MOLD BIKI	510 mm-600 mm
Simba
1	Servo Mafuta Pombi Mota Simba	25 kW
2	ServerOpump kudzingwa	200 l / min
3	Buridza kumanikidzwa	0.8 MPA
4	Kushandisa Mhepo	1.8 m² / mi
5	Kutonhora kumadokero kwemvura	0.3 MPA
6	Mvura yemvura	120 l / min
7	Avhareji yesimba rekushandisa	52-60 KW
Extruder unit
1	Screw diameter	100 mm
2	Screw l / d ratio	24 l / d
3	Inonyungudika capacit yeHDPE	160 KG / HR -200 KG / HR
4	Nhamba yenzvimbo yekupisa	4 zone
5	Screw kupisa simba	22.4 kw
6	Screw fan simba	0.6 kw
7	Extruder Motor Simba	55
Kufa musoro
1	Nhamba yezvikamu zvekupisa	5 Zone
2	Simba rekupisa	35 KW
3	Max die-pin diameter	450 mm
4	Accumulator kugona	12 (20) l
5	(Pe) Accumulator uremu	9 (15) kg

Zvimiro uye Zvakanakira

Yakagadziriswa MOLD kuvhura uye kuvhara michina Iyo yemafuta cylinder zvakananga inoshandisa kumanikidzwa kwekuvimbika mold kuvhara.
Kuchengetera Cylinder Kufa Musoro Series: Yakagadzirirwa kusarudzika kuyerera kwezvinhu uye yakakwirira-mhando zvigadzirwa zvigadzirwa.
Huru Kureba: Inotsigira yakakwira chigadzirwa vhoriyamu ye120l, ichiita kuti ive yakanaka yekugadzira midziyo yakakura-yakakura uye zvikamu zveindasitiri.
Hydraulic servico system: inoratidzira yepamusoro hydraulic service kudzora, kuendesa nekukurumidza mhinduro yekuita, kukwidziridzwa kwesimba kwakanyanya, uye kuderedza mari yekushanda.

Nzvimbo dzekushandisa

Max 120l Chemical Barrel / Auto Zvikamu / Traffic Barrier / Float / Toys / Fenicha

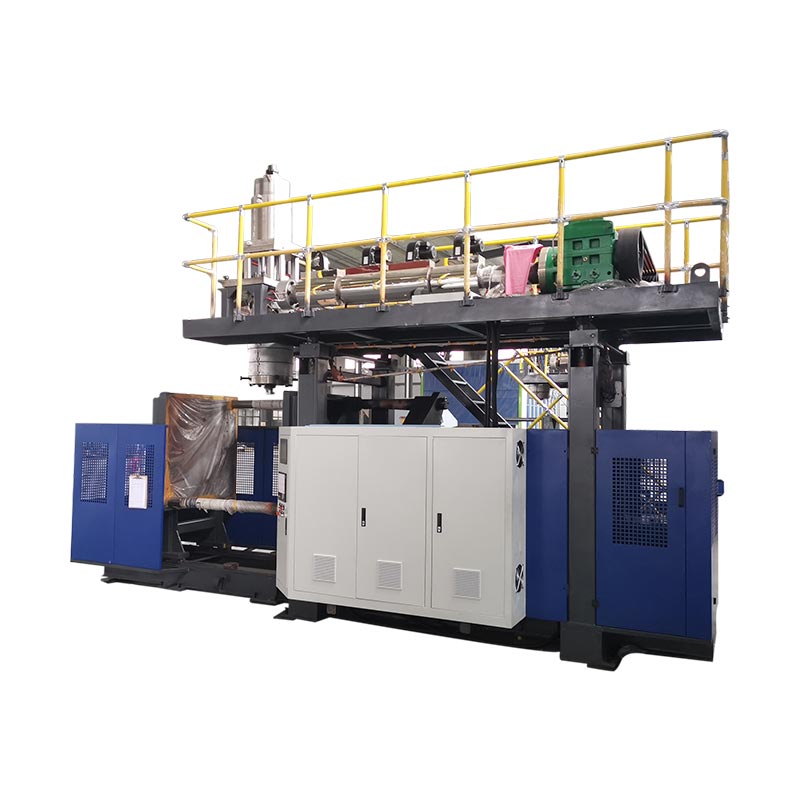

120L accumulate blow molding machine

FAQ

1. Yakawanda sei yekuunganidza modhi blow bling muchina?

Nekuda kwemisiyano yechigadzirwa, muchina unogona kuve ne robhoti ruoko / pasi kuridza system / chisimbiso chisimbiso, etc. Ndokumbira ugoverane yako yechigadzirwa chirevo, saka tinopa mhinduro yerevo.

2. Ndingasarudza sei muenzaniso wakanaka?

Kwemagorodi yenguva dzose / mabara etc. mapakeji, ingo simbisa iyo max vhoriyamu yemuchina. Kune zvimwe zvigadzirwa zvakakosha, zvinodiwa Funga kuti wakapfava / kuwedzerwa / simba etc., ndapota taura nesu kuti tiwane mhinduro yakakodzera.

3

Kinglle iite blow kuumbwa kubva muna2008, ruzivo rwedu runogona kutsigira vatengi vatsva kuti vakurumidze kutanga mitsara yekugadzira uye kuwana mari inodzoka. Kwemakore makumi maviri apfuura, takaramba tichikura uye takagadzirirwa takazvimiririra, kuwana kugadzirwa uye kunyatsogadzirwa.

4. Chii chako chevimbiso yemhando yemuchina?

Isu tichawedzera-simba ekuedza michina zvisati zvaitika kuti tisimbe kugadzirwa kwasimba. Uye ipa waranti yeari 1 kubva muchina kubva muchina uchisvika fekitori yako. Kana zvichidikanwa, zvakare unogona kupa sgs chitupa.

5. Iwe unopa nguva dzose yekugadzirisa kudzidziswa kana kure kure kutadza kuongororwa?

Ehe, isu hatingova nemafaira ekugadzirisa chete asiwo ane zvinyorwa zvehunyanzvi / mavhidhiyo kugadzirisa matambudziko.
Chirongwa chemakine chine alarm system, chinogona kureba kubatsira pakunetsa matambudziko matambudziko

6. Ndeipi yako yapfuura-yekutengesa sevhisi?

Tinogona kutumira mainjiniya kune yako fekitori kuti ikubatsire kuisa uye chitima, izvo zvinhu zvikuru zvinouya neye 1-2 gore waranti nguva, uye zvikamu zvisina kusimba zvinogona kutsiviwa mahara mukati megore rimwe.
