250l inounganidza blow molding muchina

Model:KGB120E

Izvi zvakavhurika zvekuvhura uye nekuvhara muchina wekuumbwa, kubhururuka kafiruva Yakashongedzwa neHydralic Service System yekukurumidza kupindura uye Simba Kuchengetedza, iyi 250l inounganidza blow scusing inovhara muzvigadzirwa zvakasiyana, kubva kumidziyo madiki kune yakakura mavhoriyamu.

Vhoriyamu: 250lUremu: 28t

Send Inquiry

Product Description

Iyo standard kgb120e modhi, inotungamira kuwirirana musoro blow blow scompute, Inosanganisira moog 100 gobvu controller, robhoti ruoko, uye pasi kuridza system, kuisimudzira kubereka uye mhando. Izvi zvevhesi 250l kuunganidza kuputika Molding Mess yakanakira Zvekushandisa kwakasiyana-siyana, kusanganisira makemikari chigubhu chinoputika muchina Mhinduro, mapurasitiki pallet inopepuka kuumba michina maitiro, mvura yepurasitiki Tangi inovhuvhuta kuumba michina michina, uye kugadzirwa kwa200-220l Double-mhete dzemarara, matangi emota, auto zvikamu, zvipingamupinyi traffic, mushonga fenicha, inoyerera mabou, macheya, matafura, mallets, zvikepe, uye zvimwe.

Zvinyorwa

Siriyero nhamba	Chinyorwa Pe, pp, AB ...	Mold kuvhara mafuta cylinder (single cylinder)
Siriyero nhamba	Chinyorwa Pe, pp, AB ...	Machine Model: Kgb120e
Zvinyorwa
1	Max mudziyo kugona	250 l
2	Kubuda (yakaoma kutenderera)	300 PC / HR

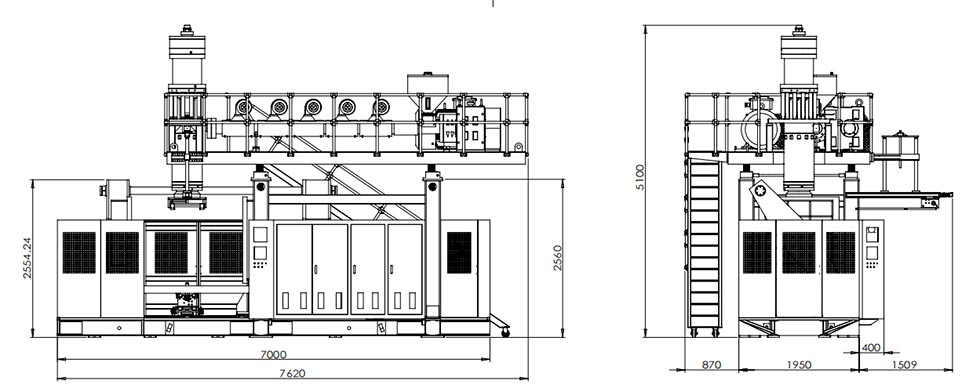

3	Machine Dimension (L × W × H)	7.6 m x 4.3 m x5.5 m
4	Machine Kurema	28 t
Kunyomba unit
1	Kusimba simba	800 kn-1200 kn
2	Mold Platen Saizi (W × h)	1300 mm x 1400mm
3	Mahwendefa akavhura stroke	800 mm-1800 mm
4	Akapfava achifambisa stroke	700 mm
5	Max Mold Size (W × H)	1100 mm x 1700 mm
6	MOLD BIKI	810 mm - 900 mm
Simba
1	Servo Mafuta Pombi Mota Simba	37 kw
2	ServerOpump kudzingwa	250 l / min
3	Buridza kumanikidzwa	0.8 MPA
4	Kushandisa Mhepo	1.8 m³ / min
5	Kutonhora kumadokero kwemvura	0.3 MPA
6	Mvura yemvura	120 l / min
7	Avhareji yesimba rekushandisa	80 KW90 Kw
Extruder unit
1	Screw diameter	120 mm
2	Screw l / d ratio	25 l / d
3	HDPEREMELTINT CAPACIT yeHDPE	250 KG / HR-320 KG / HR
4	Nhamba yenzvimbo yekupisa	6 Zone
5	Screw kupisa simba	30.2
6	Screw fan simba	0.6 kw
7	Extruder Motor Simba	90 (110) kw
Kufa musoro
1	Nhamba yezvikamu zvekupisa	5 Zone
2	Simba rekupisa	38.8 kw
3	Max die-pin diameter	600 (700) mm
4	Accumulator kugona	20 (25) l
5	(Pe) Accumulator uremu	15 (18) kg

Zvimiro uye Zvakanakira

Inoshandiswa kugadzira zvigadzirwa muindasitiri akasiyana siyana. Kunyangwe iri hombe yekugona kwekushambadzira-inodzivirira mumidziyo yemakemikari, kurongedza mabhodhi ane hutsinye mune zvechikafu zviyero zvezvigadzirwa zvezuva nezuva, zvinogona kuve zvakanyatso kudzorwa kuti usangane nemusika misika inoda.
Kudya kwekudyisa kunotora kuteedzera-kumucheto tekinoroji uye kwakarongedzwa zvichibva pane yakakwirira-huwandu hwekugadzira maitiro e120pe inovhuvhuta muchina. Rondedzera chaizvo kuyerera uye kugoverwa kwezvinhu zvisina kujairika kuti uve nechokwadi cheyureti yeiyo Ultra huwandu hwechigadzirwa, uye bvisa hurema hwakakonzerwa nekudyira zvisina kujairika.

Nzvimbo dzekushandisa

Max 220l kaviri-mhete yakavhurika kumusoro kana yakavharwa yepamusoro makemikari mudziyo / Drum / Barrel; auto zvikamu / traffic traffic / float / matoyi / fenicha / pallet

250L accumulate blow molding machine
