30L mbiri chiteshi chinoputika muchina

Model:KGB100DB

Iyo KGB100DB ndiyo Injini-Injinji Yakagadzirirwa yakawanda yakagadzikana 30L mbiri chiteshi chepapurasitiki-kugadzira mwanyina zvido, zvakadai seJerrycans nemakemikari midziyo, inovimbisa kusarongeka uye kushanda zvakanaka.

Vhoriyamu: 30lUremu: 23t

Send Inquiry

Product Description

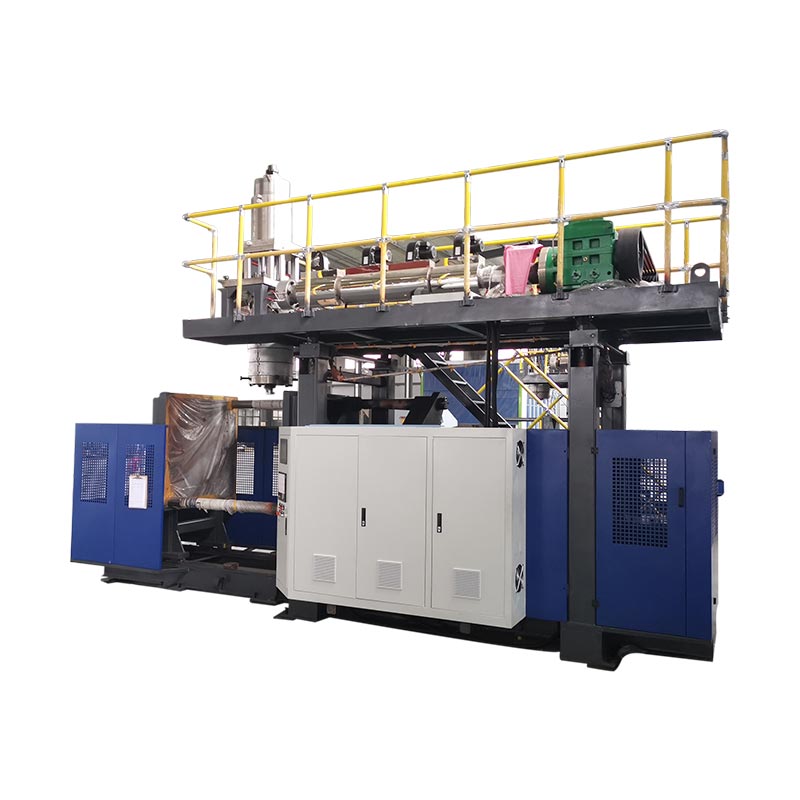

KGB100DB ndeye 30L kaviri Station Blow Malding Machine, Suite ye ayo akakwira-kumhanya kugadzirwa nekunyatsojeka kurongedza kudzora zvinodiwa Vatengi. Kwete chete kune yakajairika chimiro, iyo yakakosha chimiro chakakodzera zvakanyanya yemhando iyi inovhuvhuta muchina wekuumba. Inosanganisira moog 100 gobvu Controller, robhoti ruoko, uye pasi rinoputika system, kuvandudza kubereka uye mhando yechigadzirwa.

Zvinyorwa

siriyero nhamba	Chinyorwa Pe, PP, ABS, HMWHDPE ...	Specialized Machine Series
siriyero nhamba	Chinyorwa Pe, PP, ABS, HMWHDPE ...	Machine Model: Kgb100db
Zvinyorwa
1	Max mudziyo kugona	30 l
2	Kubuda (yakaoma kutenderera)	650 PC / HR X 2 PC / HR
3	Machine Dimension (L × W × H)	6.4 m x 6.2 m x 4 m
4	Machine Kurema	23t
Kunyomba unit
1	Kusimba simba	215 kn
2	Mold Platen Saizi (W × h)	750mm × 860 mm
3	Mahwendefa anovhura troke	350 mm -850 mm
4	Akapfava achifambisa stroke	/
5	Max Mold Size (W × H)	520 mm × 860 mm
6	MOLD BIKI	360 mm -420 mm
Simba
1	Servoil Pump Mota Simba	11 KW
2	Servo pump kutamiswa	80 L / Min
3	Blowpressure	0.8 MPA
4	Kushandisa Mhepo	0.7 m² / mi
5	Kutonhora kumadokero kwemvura	0.3 MPA
6	Mvura yemvura	70 L / Min
7	Avhareji yesimba rekushandisa	45 K - 60 KW
Extruder unit
1	Screw diameter	100 mm
2	Screw l / d ratio	24 l / d
3	Inonyungudika capacit yeHDPE	160 KG / HR -200 KG / HR
4	Nhamba yenzvimbo yekupisa	4 zone
5	Screw kupisa simba	22.4 kw
6	Screw Fanpower	0.6 kw
7	Extruder Motor Simba	55
Kufa musoro
1	Nhamba yezvikamu zvekupisa	5 Zone
2	Simba rekupisa	22.8 kw
3	Maxdie-Pin Diameter	220 mm
4	Accumulator kugona	5 l
5	(Pe) Accumulator uremu	3.75 kg

Zvimiro uye Zvakanakira

Kuunganidza musoro nekaviri chiteshi
Yakagadziriswa MOLD kuvhura uye kuvhara mechanism: Yakashongedzwa neyakajaira die Dynchronous Mol Colying Systems uye kaviri-station blow Scing Melding Melding Meld Iyo yemafuta cylinder zvakananga inoshandisa kumanikidzwa kwekuvimbika mold kuvhara.
Kuchengetera Cylinder Kufa Musoro Series: Yakagadzirirwa kusarudzika kuyerera kwezvinhu uye yakakwirira-mhando zvigadzirwa zvigadzirwa.
Huru Kureba: Inotsigira yakakwira chigadzirwa vhoriyamu ye120l, ichiita kuti ive yakanaka yekugadzira midziyo yakakura-yakakura uye zvikamu zveindasitiri.
Hydraulic servico system: inoratidzira yepamusoro hydraulic service kudzora, kuendesa nekukurumidza mhinduro yekuita, kukwidziridzwa kwesimba kwakanyanya, uye kuderedza mari yekushanda.
