5l mbiri chiteshi chinoputika muchina

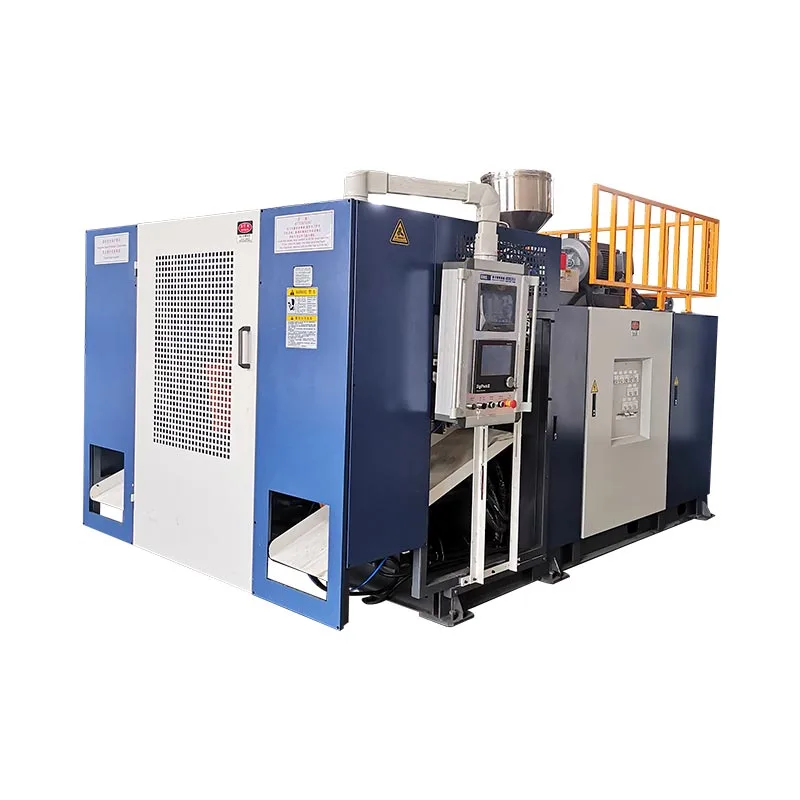

Model:KGB5D

Kanda kugadzirwa kwako neyedu versatile 5l mbiri chiteshi chinoputika muchina. Iyi yakakwirira-prement muchina inopa shanduko inochinjika, kusanganisira 2, 3, kana 4 yakawanda-kufa musoro setup, kuti ugare wakakura wezvemukati wemidziyo.

Vhoriyamu: 5lKurera: 5.2t

Send Inquiry

Product Description Specification Application

Kubva kuDiki-vhoriyamu mabhodhoro emidziyo mikuru 5l midziyo, iyi 5L mbiri chiteshi chinoputika muchina unovimbisa inobudirira kugadzirwa uye hunhu hunoenderana. Yakanakira kune dzakasiyana siyana application, kusanganisira yekuwachira contagence Package inovhuvhuta Machine Solutions, iyo inoburitsa kunze kwakasarudzika uye kunowedzera kudzoka kwako pakudyara.

Zvimiro uye Zvakanakira

● Dimbu-Station transliss inomhanya, uchishandisa buffer inovharidzira vharuvhu rekuumba, inoshanda uye yakagadzikana
● Iyo inofa Musoro Autross Center Kupa Fomu
● Iyo yemagetsi yekudzora yeMagetsi inotora mitsappishi plc kutonga, uye yakazvimirira manyoreri mabhatani anofambisa outireti uye kugadzirisa.
● Iyo yakakwira chigadzirwa vhoriyamu ndeye 5l, iyo ndiyo yaunosarudza kuridza michina yekuumba yekugadzira misa kugadzirwa kweisina 2-5l.
● Sekureva kwehunhu, zvinogona kukamurwa kuita rimwechete, rakapetwa kaviri, matatu denderedzwa, mutsara unoputika, nezvimwe.
● Iyo hydraulic system inogamuchira dhizaini yemusiyano, yakanyanya kunaka kushanda uye nekukurumidza kumhanya

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
