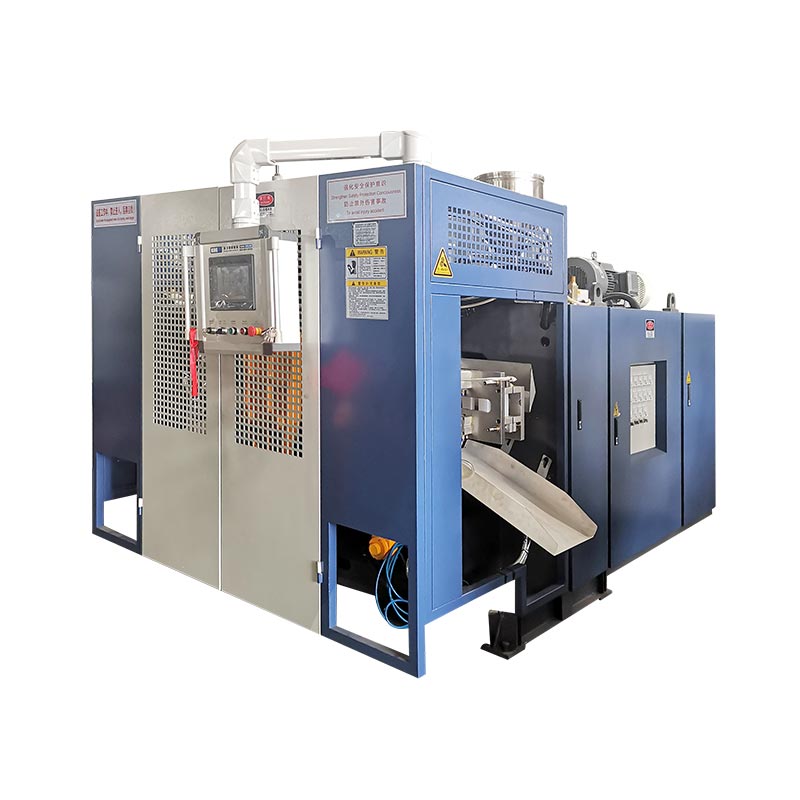

2l kaviri Station Extrusing Blow Sumding Machine

Model:KGB2D

Gadzirisa kugadzirwa kwako nemhando yedu yepamusoro 2l mbiri chiteshi chekutora kwekuputika kwemuchina. Yakagadzirirwa yakakwira 2L midziyo, iyi shanduro yezvinhu izvi seamuzosimbisiki inoshandura kuti igadzire huwandu hwakawanda hwezvigadzirwa.

Vhoriyamu: 2LKurera: 4.5T

Send Inquiry

Product Description Specification Application

Chinja nyore nyore kusvika ku2, 3, kana 4 yakawanda-kufa misoro yekugadziriswa kuti igare madiki mavhoriyamu, ichiita kuti ive yakakodzera yekunyorera midziyo dzakasiyana siyana. Kubva kuShampoo Mabhodhoro Kuti Mukaka Bottle Blow Buling Muchina Unoda, iyi 2L mbiri yechiteshi Extrusing Blow Buling Muchina unoburitsa huwandu hwemhando yepamusoro uye kunze kwekubuda. Ongorora yedu yemakwikwi epurasitiki bhodhoro rinoputika kuumbwa kwemuchina mutengo uye kuvhura mukana wekuwedzera kwekuwedzera.

Zvimiro uye Zvakanakira

Iyo Yepamberi Yemagetsi Control System inogona kutaridzika se "Smart uropi" yekuvhiringidza, yakagadzirirwa naMitsubishi Plc kutonga, neyechokwadi quustomation maitiro uye kugona kuita mirairo yakaoma. Panguva imwecheteyo, magadzirirwo ekufunga akazvimirira zvinyorwa zvinobvumira mashandiro ekutanga kuti vatangezve ma parmeter kana kuongorora zvisingatarisirwi kana zvidiki zvekugadzirisa.
Iyo compact uye multifundional inoratidzika kutarisisa pane zvidiki-chiyero kugadzirwa kwemidziyo madiki uye epakati-siki ye 2l uye pazasi. Dhizaini yemuviri yakarongeka inowana kunyatsobudirira mune shoma nzvimbo, inogara munzvimbo diki, iri nyore kuisa, uye inoenderana zvakakwana kune akasiyana siyana ekugadzira musangano wekugadzira. Kunyangwe iri diki yebasa kana fekitari yakakura, inogona kudzorwa zviri nyore, kupa mhinduro dzakakodzera dzekugadzira dzemabhizimisi emabhizinesi akasiyana.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
