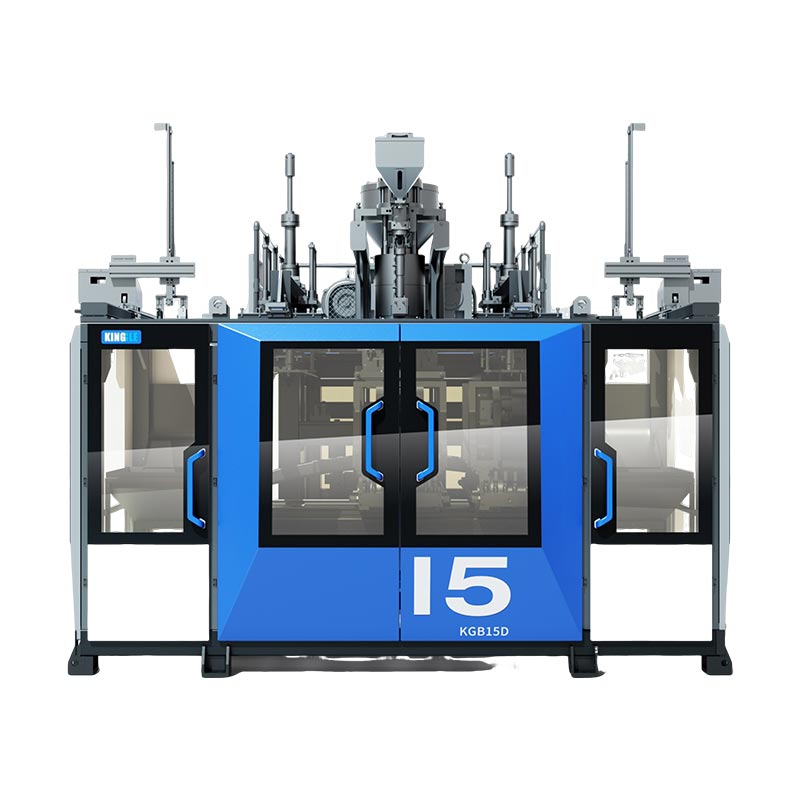

15l mbiri chiteshi chinoputika muchina

Model:KGB15D

Gadziridza kugadzirwa kwako neyedu kuita kaviri kaviri-station inoenderera ichirovera muchina, yakagadzirirwa midziyo inosvika 15l. Iyi yakakwirira-performance 15l mbiri chiteshi chinoputika muchina zvinopa shanduko inoshanduka, kusanganisira 2, 3, kana 4 yakawanda-kufa musoro wakakura wezvemukati medu.

Vhoriyamu: 15LKurera: 12.5T

Send Inquiry

Product Description Specification Application

Kubva padiki-vhoriyamu mabhodhoro emidziyo mikuru 15l midziyo, kusanganisira mapurasitiki emabhomba Yakanakira kushamisika kwakasiyana-siyana, kusanganisira zuva nezuva kuridza mhere yekuumba mashura, sekushamwaridzana, yekuwachira, uye inoburitsa kunze kwekunze uye inowedzera kudzoka kwako pakudyara.

Zvimiro uye Zvakanakira

Dziviriro mbiri yekugadzira, inosimbisa kusimudzira maitiro, yakanyanya kupfupikiswa kutenderera kwemidziyo ye30L, zvakapotsa zvakapetwa kaviri kuenzaniswa neyakaenzana, uye zvakabudirira kusangana nezvinodiwa mukugadzirwa kwakakura.
Yakashongedzwa neyakagwinya-precision Fold switching mudziyo, Buffer svutugadzike yekudzora
Mitsubishi PLC Main Control, pre-Set chirongwa chekugadzirisa chaicho chekuputika ma paramita, mabhatani evashandi vevashandi kuti vafambe, uye nekubatana kwevanhu vakaringana.
Tinogona kuburitsa midziyo 15L ine imwechete-layer, kaviri-danda, matatu-layer sekudiwa, zvakakodzera pakurongedza zvido mumakemikari, chikafu, uye pharmaceutical.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
