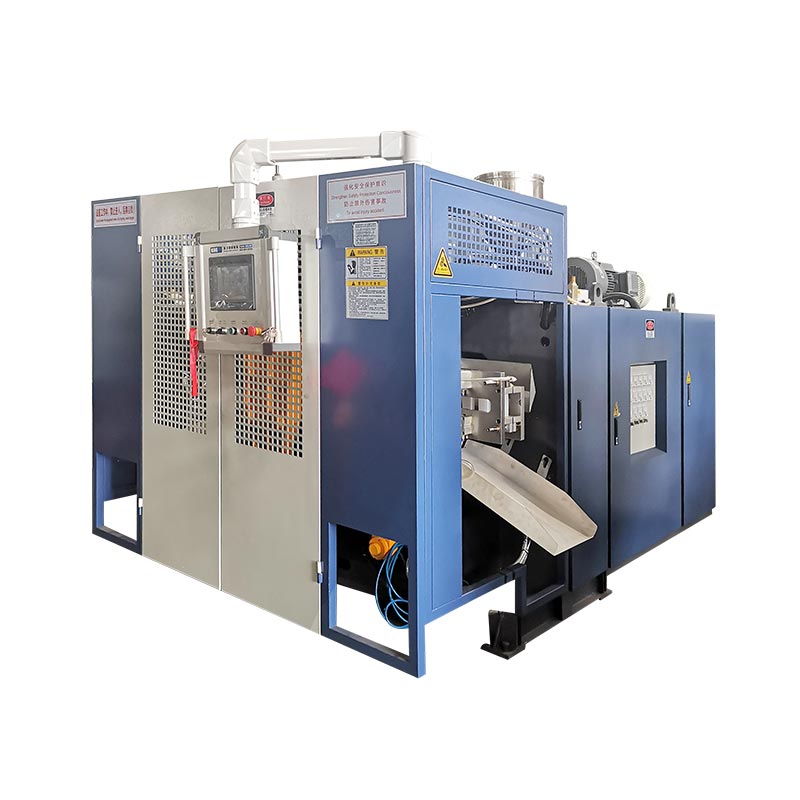

2l Imwe Station Blow Buling Muchina

Model:KGB2L

Iyi 2L imwe station inovhuvhuta muchina wekuumba, yakakodzera max 2l mudziyo kugadzirwa, kunochinja zvakanyanya. Iyo inopa sarudzo yekuchinja kusvika ku2, 3, kana 4 yakawanda-kufa misoro yekugadzirisa

Vhoriyamu: 2LKurera: 2.5T

Send Inquiry

Product Description Specification Application

Uku kushanduka kwakanyanya kuwedzera kwezuva nezuva kubuda, kuiita iyo yakakodzera mhinduro kune vagadziri kutsvaga kuti uwedzere kubhururuka uchiita kuti ugare uine hunyanzvi hwechigadzirwa. Shandisa iyi 2L imwe station blow Buling Meld Kune makuru makuru, funga nezve 5l kana 15l bhodhoro rinoputika muchina unoumba nemushini wakawanda kufa.

Zvimiro uye Zvakanakira

Imwe Station Transless inomhanya ichichinjisa mechanism, yakashongedzwa neyakajeka buffer yekubhuroka yekuvanda yekuvanza uye inoshanda uye inoshanda mold shandiro yekushandisa.
● Musoro unofa wakagadzirwa uine system yepakati yekudyisa, optimizing kugoverwa kwezvinhu zvekuvandudzwa kwechigadzirwa mhando.
.
● Neine huwandu hwechigadzirwa huwandu hwe 2l, zvinomira senge sarudzo yepamusoro yeyakaderera-vhoriyamu kugadzirwa kwemidziyo kubva pa50ml kusvika 2l.
● Nezve maitiro echigadzirwa, inopa sarudzo dzinoverengeka kusanganisira imwe-layer, kaviri-layer zvimiro, pamwe nevaridzi vepasirese kusangana nemusika misika yemusika.
● Iyo hydraulic system inoratidzira kusiyanisa dhizaini, kuendesa yakanyanya kushanda uye nekukurumidza mhinduro inomhanya, inowedzera kuwedzera kugadzirwa kwekugadzira.

Specifications

serial number	Material PE、PP、PVC、PA...	Mold-moving series
serial number	Material PE、PP、PVC、PA...	Machine model:KGB2L
Specifications
1	Max container capacity	2L
2	Output(dry Cycle)	600 PC/HR
3	Machine Dimension(L×W×H)	3.1 M x 1.7 M x 2.5 M
4	Machine weight	2.5T
Clamping Unit
1	Clamping force	40KN
2	Mold platen size(W×H)	380 MM x430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM x 380MM
6	Mold thickness	160 MM - 300MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	50 L/min
7	Average energy consumption	12-18 KW
Extruder unit
1	Screw diameter	50 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	30 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	7.5 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	11KW
Die head
1	Number of heating sections	3 * 5 ZONE
2	Heating power	3.2 KW
3	1MTMaxdie-pin diameter	90 MM
4	2Center distance of double die head	130 MM
5	2MTMax die-pindiameter	60 MM
