15l mbiri chiteshi chinoputika muchina

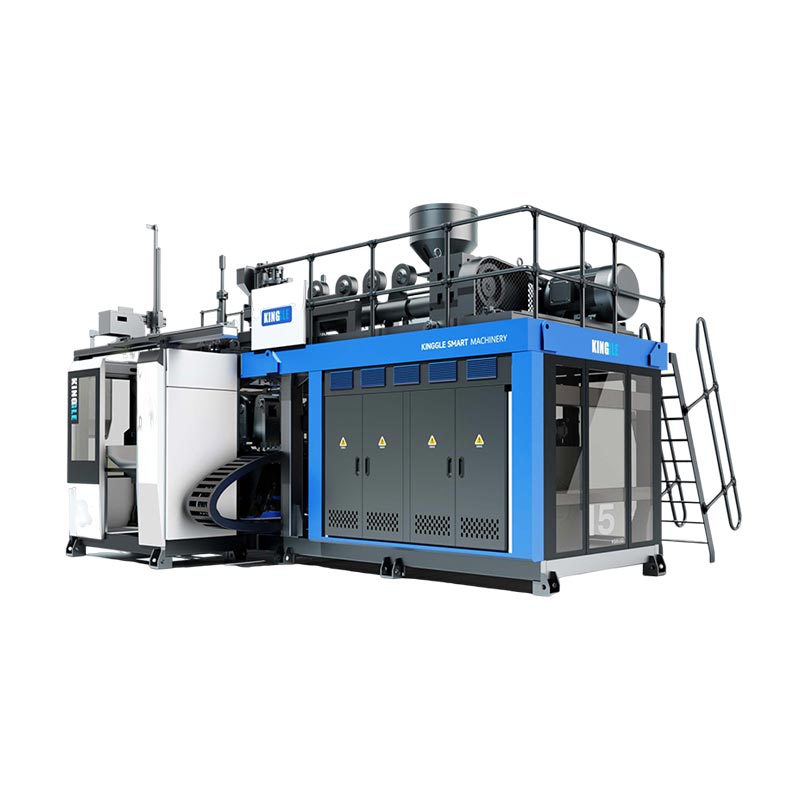

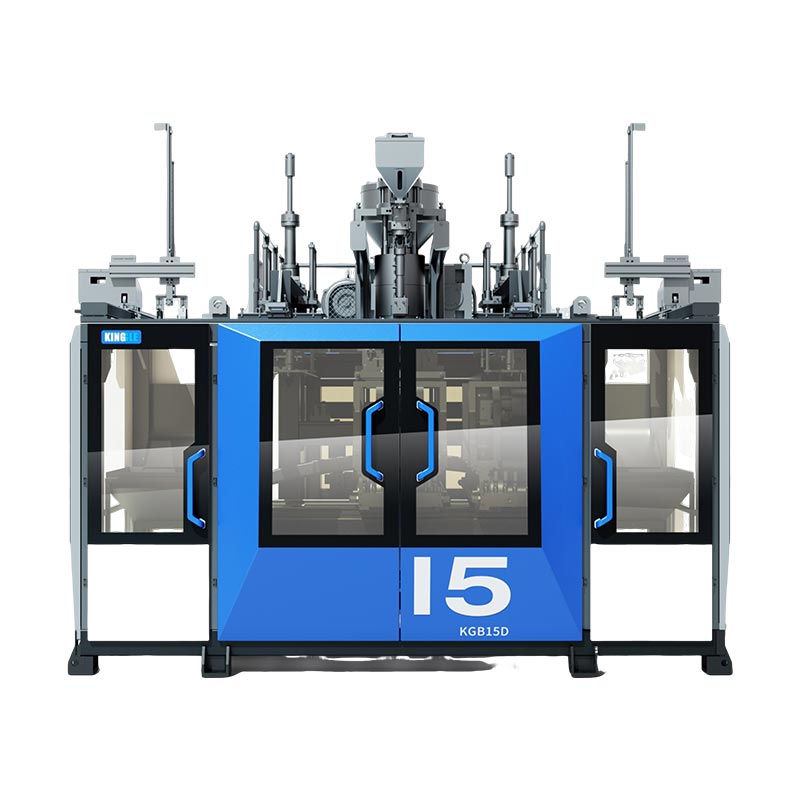

Model:KGH15D

Rangarira kugadzirwa kwako bhodhoro neKGH BOLT, 15L DZVIMBO YAKABUDA PLOPLING MOBLE MELDSTE LETRULT LEXT BLECE Machinji Akakwana

Vhoriyamu: 15LKurera: 18.5T

Send Inquiry

Product Description Specification Application

Rangarira yako bhodhoro yekugadzira neKGH kuumbwa kune mirefu matsva. Yakagadzirirwa kuti zvikumbiro zvakaita se 10L uye 15L mabhodhoro, iyo KGH15D inovimbisa kugadzirwa kwehunyanzvi hwemidziyo yemhando yepamusoro ne kusarudzika kwekutanga. Ingave yekugadzira yakakura-yakakura yekugadzira kana tsika Zvishandiso, muchina uyu unovimbisa kumusoro-tier kubuda, kukubatsira iwe kugara mberi mumusika. Neyakagadziriswa zvinhu uye zvakavimbika kuita, iyo Kgh15d inopa mhinduro yakakwana yemabhizinesi ari kutsvaga optimize kugadzirwa uye kusimudzira chigadzirwa mhando.

Zvimiro uye Zvakanakira

Gadziridza kugadzirwa kwako neyedu kaviri-station kuenderera mberi kuputika muchina wekuumba, yakagadzirirwa midziyo inosvika 15l. Nekuchinja-chinja. "
Yakanakira mashandisirwo akafanana neshampoo, yekuwachira detergent, uye cosmetic kurongedza, muchina uyu unounza kugadzirwa kwakanyanya-kumhanya uchiramba uchichengetedza mhando yepamusoro-tier. Yayo inoshamisa uye inoshanda dhizaini inobatsira kuderedza kutambisa uye kuwedzera kubuda, ichiita kuti isimbe-inoshanda mhinduro inowedzera kudzoka kwako pakudyara kwako.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH15D
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	5.6 M x 3.9 M × 3.5 M
4	Machine weight	18.5T
Clamping Unit
1	Clamping force	200 KN
2	Mold platen size(W×H)	580 MM x500 MM
3	Platen openingstroke	320 MM -800 MM
4	Platen moving stroke	720 MM
5	Max mold size(W×H)	700 MM -500 MM
6	Mold thickness	350 MM -450 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.5 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	140 L/min
7	Average energy consumption	40 KW -50 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM -280 MM
5	(PE)Accumulator weight	170 MM
