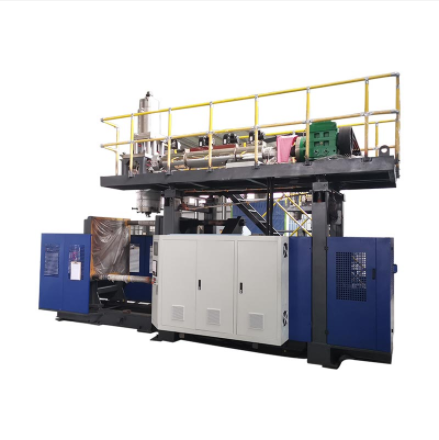

30l makemikari chigubhu chechipiri chiteshi chekuputika muchina

Model:KGH30D

Yakagadzirwa nemakemikari ako ekuchengetedza anodikanwa mundangariro, iyo KGH30D ndeyekuvimbika kiripi chidimbu chechipiri chiteshi chekuputika chemushini chakavakwa Yakanakisa Ngatitaurei / tisvike-bata nesu kuti tigadzire yako yakagadziriswa mhinduro nhasi!

Vhoriyamu: 30lKurera: 28.5t

Send Inquiry

Product Description Specification Application

Yakakwana yekugadzira 25l uye 30l chemical zvigubhu, muchina uyu unovimbisa zvese zvinodikanwa uye mutengo-zvinobudirira, kugadzira Iyo yakakosha midziyo ye chero mutsara wekugadzira. Neyakagadzirwa kwazvo dhizaini uye precision, iyo KGH30D 30L CHEMICAL DUM DEXT STUM chiteshi chinoputika muchina zvinopa basa rekuita nekukurumidza uku ukukubatsira kwanisa zvakanaka uye kuderedza mari inoshanda. Mumwe wake nesu nhasi kuti gadzira mhinduro yakagadzirirwa inokodzera zvaunoda chaizvo uye zvinowedzera yako Kugona kwekugadzira.

Zvimiro uye Zvakanakira

Gadziridza kugadzirwa kwako neyedu kaviri-station inoenderera ichirova muchina, yakagadzirirwa midziyo kusvika pamakumi matatu. Nekuchinja-chinja. "
Yakanakira mashandisirwo akafanana neshampoo, yekuwachira detergent, uye cosmetic kurongedza, muchina uyu unounza kugadzirwa kwakanyanya-kumhanya uchiramba uchichengetedza mhando yepamusoro-tier. Yayo inoshamisa uye inoshanda dhizaini inobatsira kuderedza kutambisa uye kuwedzera kubuda, ichiita kuti isimbe-inoshanda mhinduro inowedzera kudzoka kwako pakudyara kwako.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH30D
Specifications
1	Max container capacity	30L
2	Output(dry Cycle)	450 PC/HR x 2 PC/HR
3	Machine Dimension(L×W×H)	5.8 M x 4.2 M x 3.8 M
4	Machine weight	28.5T
Clamping Unit
1	Clamping force	300 KN
2	Mold platen size(W×H)	630 MM x680 MM
3	Platen openingstroke	450 MM -1000 MM
4	Platen moving stroke	750 MM
5	Max mold size(W×H)	730 MM -680 MM
6	Mold thickness	480 MM -580 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	180 L/min
7	Average energy consumption	70 KW -80 KW
Extruder unit
1	Screw diameter	100 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	300 Kg/hr
4	Number of heating zone	5 ZONE
5	Screw heating power	20 KW
6	Screw fanpower	0.9 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	280 MM
5	(PE)Accumulator weight	170 MM
