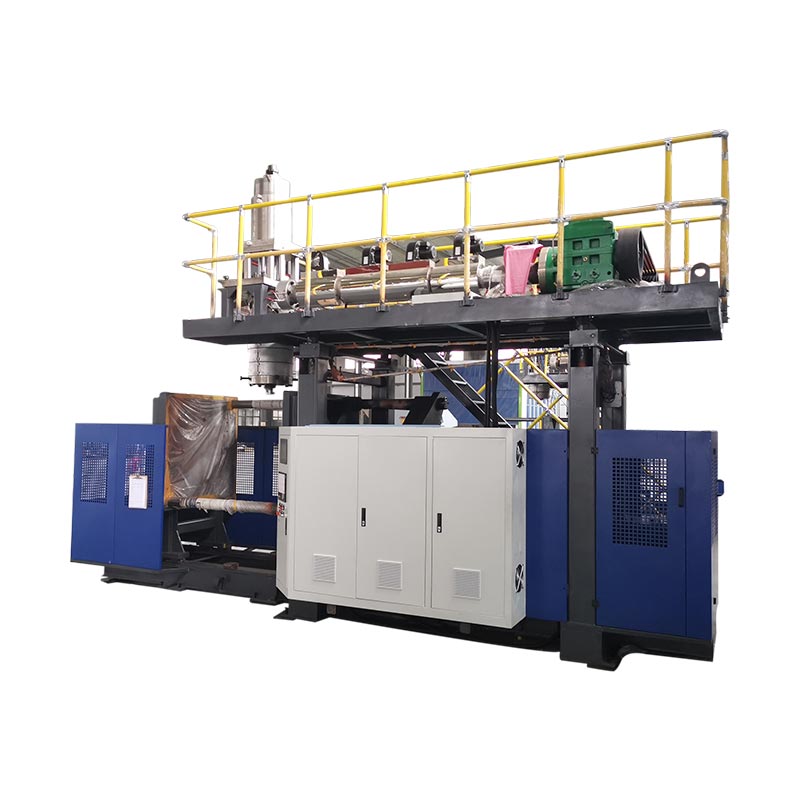

160l Float Blow Moding Machine

Model:KGB110F

Kuti utsigire iyo Float Indasitiri, KGB110F 160L Float Blow Scing Mess inovimbwa neGlobal Blow Buling Machine Vagadziri veMuchina. Zvemapurasitiki kuputika kuumbwa Machine Machine Symbols Usapotsa-bata nesu kuti uchinje kugadzirwa kwako nhasi!

Vhoriyamu: 160lUremu: 24t

Send Inquiry

Product Description Specification Application

Iyo Standard KGB110f Model, inotungamira kuwirirana musoro kuputika Molding Muchina, Inosanganisira moog 100 gobvu controller, robhoti ruoko, uye pasi kuridza system, kuvandudza kubereka uye zvigadzirwa zvechigadzirwa. Iyi 160l float blow molding muchina ndeye Yakanakira kune dzakasiyana-siyana zvikumbiro, kusanganisira makemikari chigubhu chinovhuvhuta muchina Solutions, Plastiki Extrusion Blow Buling Molding Machine Maitiro, Rovera Kurova Kuumbwa Machine Zvikumbiro, uye kugadzirwa kwemakemikari kurongedza Mabhonzo, matangi emota, toy kuputika kuumbwa Machine zvikumbiro, auto zvikamu, traffic Zvipingaidzo, kurapa fenicha, inoyerera buoys, macheya, uye matafura.

Zvimiro uye Zvakanakira

Kuchera zvakadzika mune kugona kwehunyanzvi kunogona kupa imwe-layer yakakwira-simba michina mhinduro kune vatengi vanotevera mutengo-kushanda; Inogona zvakare kuvaka kaviri-layer kana akawanda-layer composite zvivakwa neakanakisa mhizha
Empower Key Mashandiro eiyo 110f inovhuvhuta muchina muchina ane rubancess uye yakavimbika hydrautic simba simba system. Kuenderera mberi uye kugadzikana Simba Kupfuura

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB110F
Specifications
1	Max container capacity	160 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M × 5.2 M
4	Machine weight	24T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1100 MM×1900 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	600 MM ×1900 MM
6	Mold thickness	610 MM - 750 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	75(90) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	20 L
5	(PE)Accumulator weight	15 KG
